Product Details:
|
| Shaping Mode: | Blowing Mould | Product Material: | Steel |
|---|---|---|---|

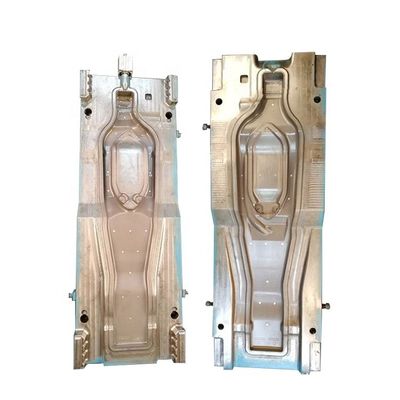

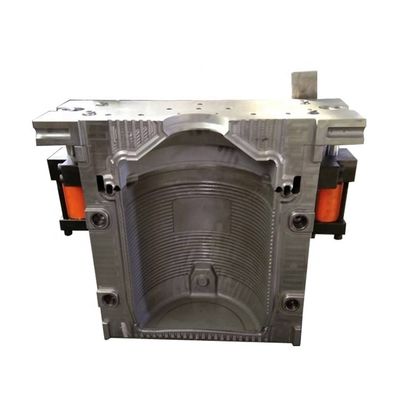

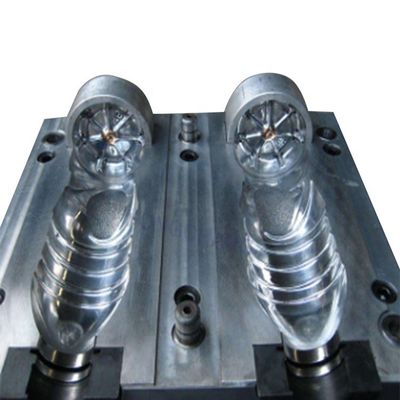

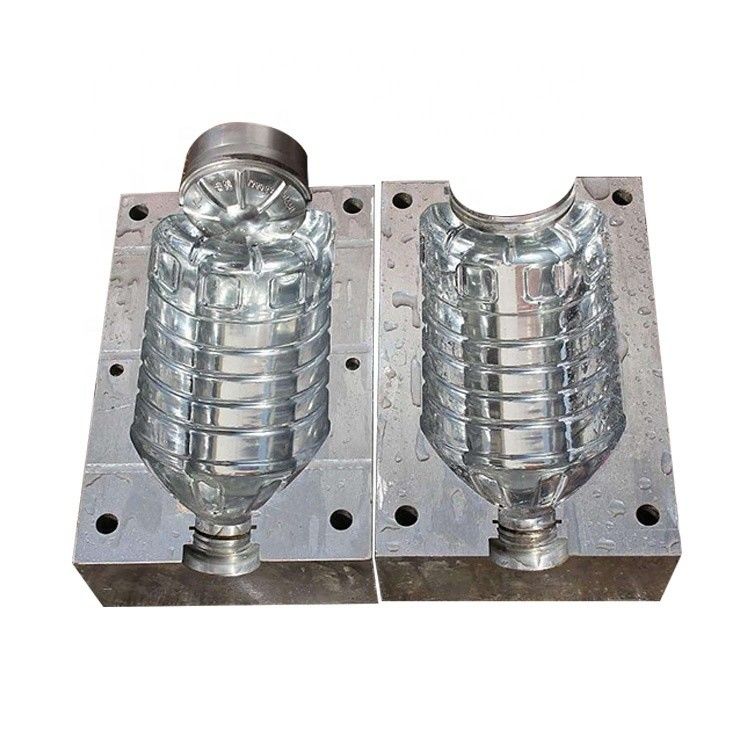

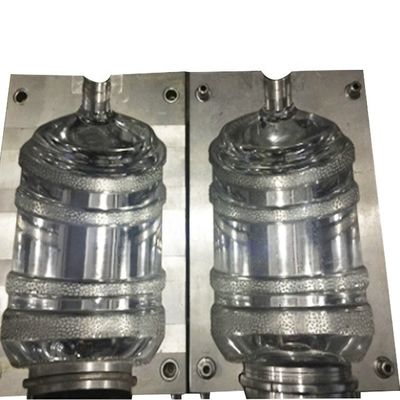

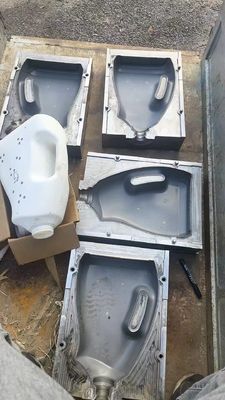

| Product: | Fully Automatic/Semi-automatic Blowing Mould | Product Name: | Custom Blowing Mould For PET Bottle/Can/HDPE Plastic Bucket |
| Mould Material: | #45/P20/718/718H/S136 | Product Material: | PET/PMMA/HDPE/LDPE/Polycarbonate |
| Mold Cavity: | Single Cavity\ Multiple Cavity | Mould Life: | 300000-500000 Shots |
| Application: | Standard And Non-standard Plastic Bottles, Plastic Buckets | Customized Processing: | STEP Drawing Or Samples |
| Mould Surface Treatment: | Polish. Sand Blast | Advantage: | 32 Years Rich Experience |
| MOQ: | 1set | ||
| Highlight: | Mineral Water Bottle Blowing Mould,Blow Molding Mold With Stacking Bucket |
||
|
Product Raw Material
|
PET /HDPE/LDPE etc.
|
|
|
|
|||
|
Mould Raw Material
|
Mould steel P20, 718, 2738, 2316, S136, NAK80, 2344 etc.
|
|
|
|
|||
|
Standard
|
ISO9001:2018
|
|
|
|
|||
|
Quality
|
300000shots~500000shots,customized.
|
|
|
|
|||
|
Cavity
|
Single/Double/Multiple
|
|
|
|
|||
|
Size/Shape/Color
|
Customized
|
|
|
|
|||
|
Mould Processing
|
Designing sample or drawing by software UG or pro/e, improving mold design with mold flow analysis, production after design confirming.
|
|
|
|
|||
|
Product Processing
|
1. Plastic embryo (hollow plastic tube extrusion);
2. Close the valve mould on the embryo, clamp the mould and cut off the embryo; 3. Blow the mould to the cold wall of the cavity, adjust the opening and maintain a certain pressure during cooling; 4. Open the mould, remove the blowing parts; 5. Trim the flying edge to get the finished product. |
|
|
|
|||
|
Applications
|
aviation, aerospace, Medical care,electronics, computers, machinery, ships, automotive industry, household appliances,communications, light industrial products, gifts, toys, plastic products, sports and leisure.
|
|
|
|
|||
